Foundations

Session 1: Getting Started

Joshua Wilson Black

joshua.black@canterbury.ac.nz

Te Kāhui Roro Reo | New Zealand Institute of Language, Brain and Behaviour

Te Whare Wānanga o Waitaha | University of Canterbury

2025-07-31

Overview

Overview

1. R and RStudio Orientation
2. Core concepts and use
3. Jumping ahead: a realistic(ish) example

This session starts our journey through the “Foundations” section of the NZILBB statistics workshops. The goal is to get from no knowledge of R and Rstudio, to reproducible and shareable data analysis in line with at least some of the Open Science principles, without picking up some common bad habits.

Today:

1. We’ll look at what R and RStudio are and do a bit of orientation.
2. We’ll look at the core concepts of R and do some sensible configuration of RStudio. This will include basic maths, the idea of a data frame, which is how R represents the kid of data we work with (basically, something which could go in a spreadsheet), etc.
3. Finally, we’ll jump to the end of the story by looking at a realistic-ish example of a data analysis workflow including data, filtering, plotting, and modelling. This should give a taste of why we are bothering will all of this effort!

Orientation

R is a programming language, created by two statisticians at the University of Auckland, Ross Ihaka and Robert Gentleman, and with a focus on data analysis.

RStudio is a piece of software for carrying out data analysis using R. It makes it easier to use R interactively, to view data, and to see any visualisations etc. which R can be made to produce. You don’t have to use RStudio to interact with R, but we will throughout these sessions.

Ctrl + Shift + N

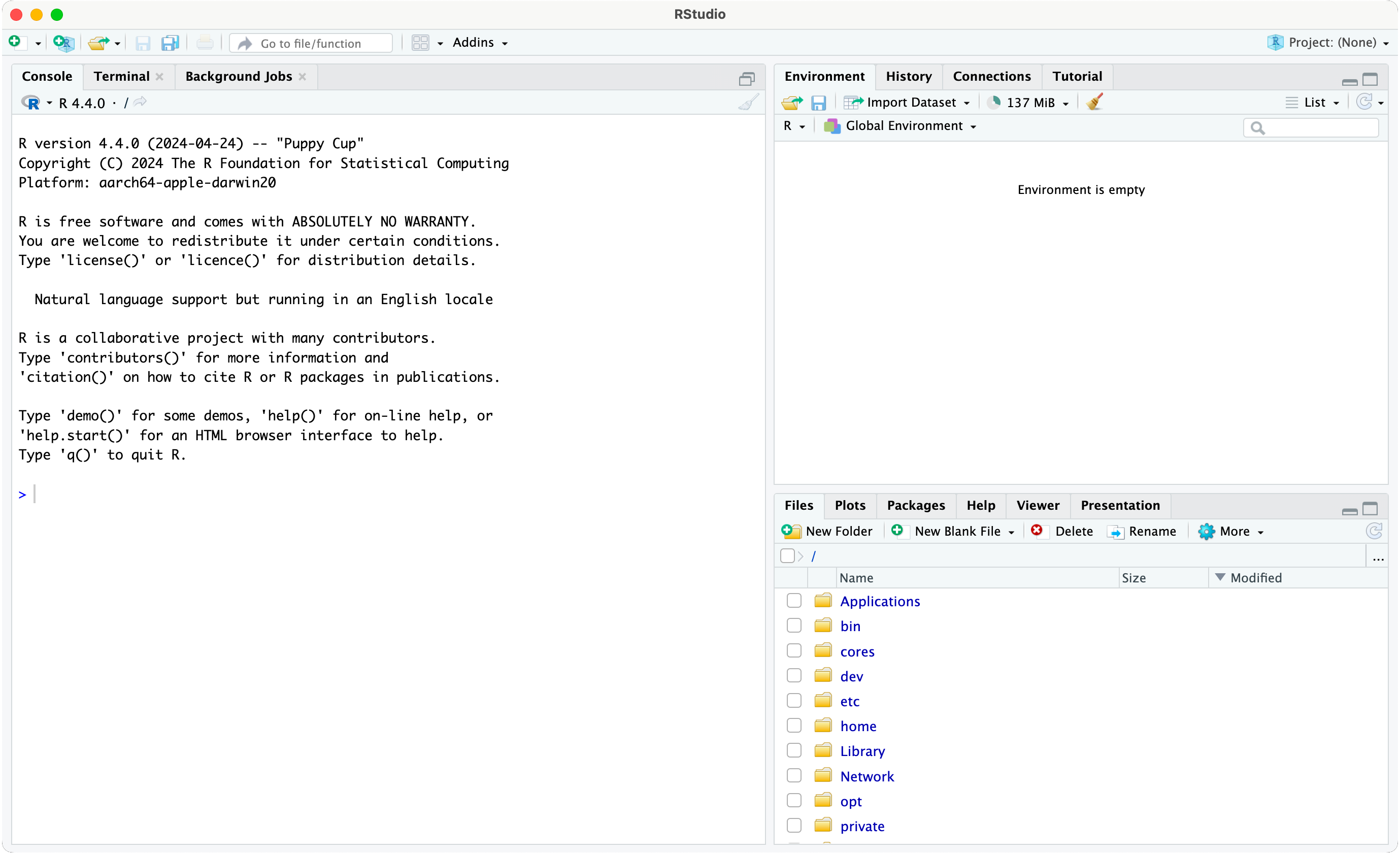

Let’s open RStudio and see what’s in front of us.

You should see a window containing three ‘panes’, all of which have multiple tabs. You’ll find that there’s quite a bit of variation in the terminology people use to describe all of the aspects of RStudio (and, indeed, R), but here is the official terminology.

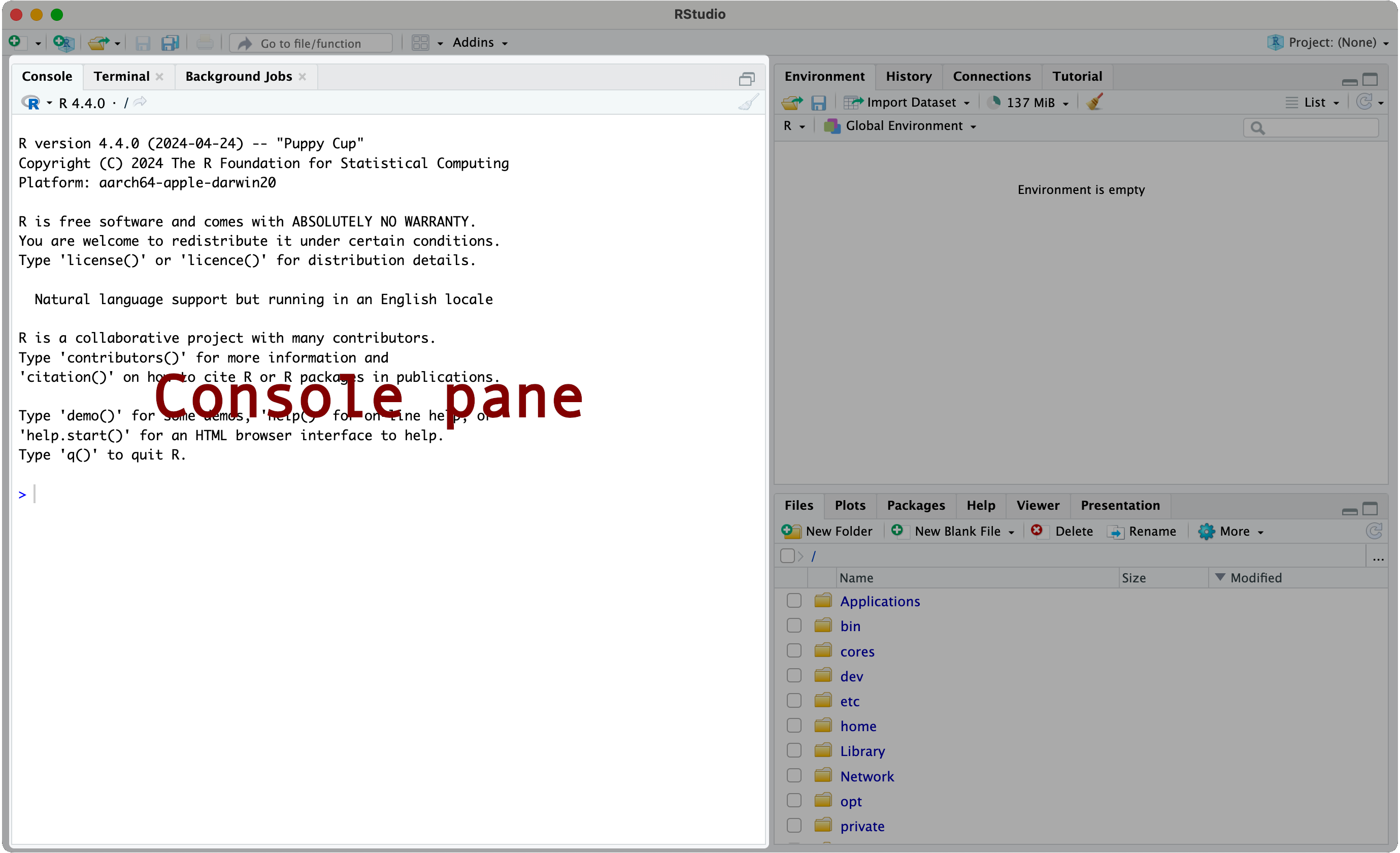

1. First we have the ‘console pane’. This let’s us directly interact both with R and with the computer we are using more generally (in the ‘Terminal’ tab).

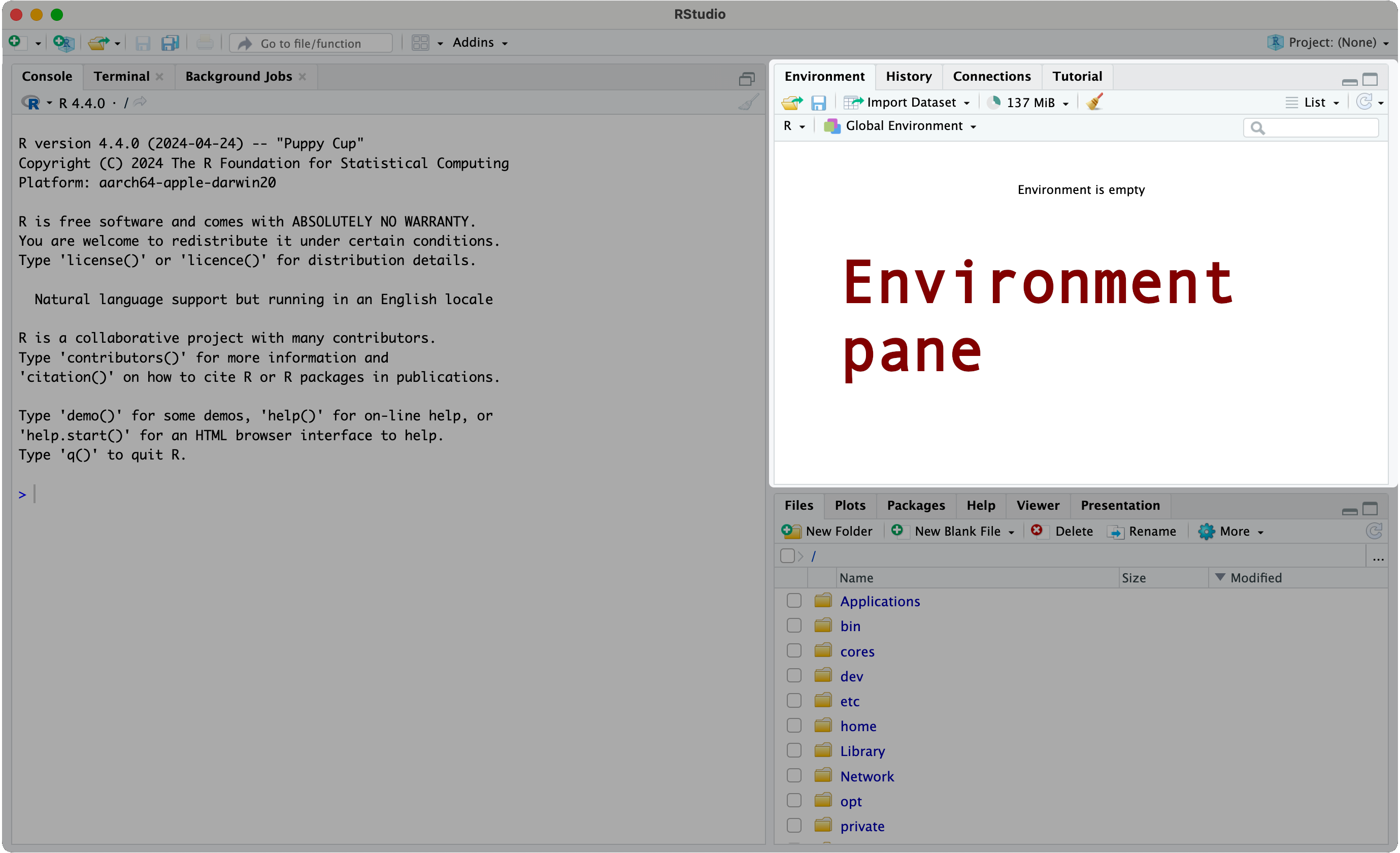

2. To the right we have the ‘environment pane’. This lets us see what we are currently working with, what commands have been sent to R previously in a session, and any details from git, if we are using it.

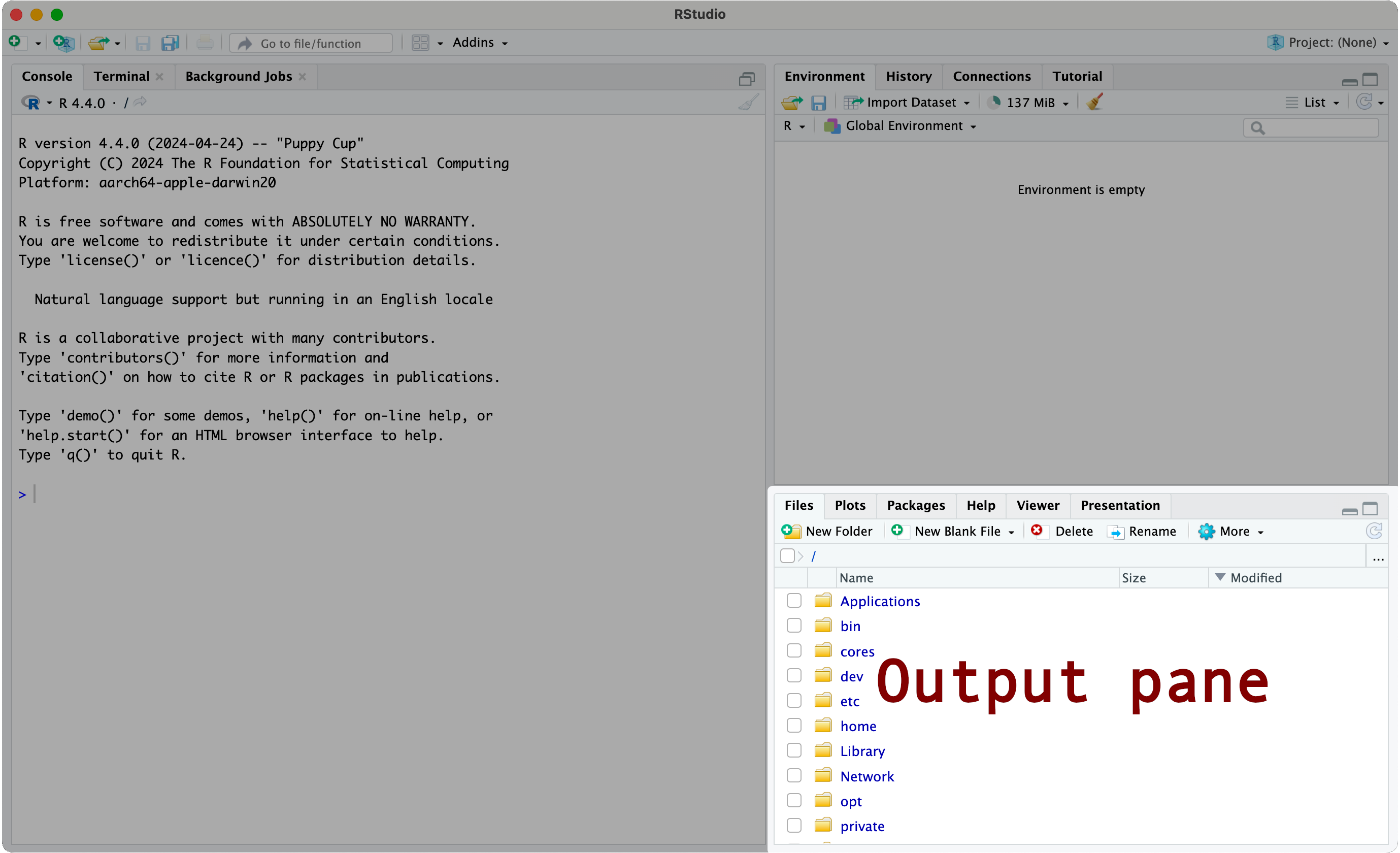

3. We have the output pane. This is where we often see the outputs of any plots we might make, and any files in our project (or files elsewhere in our computer), just as you would use an ordinary file explorer.

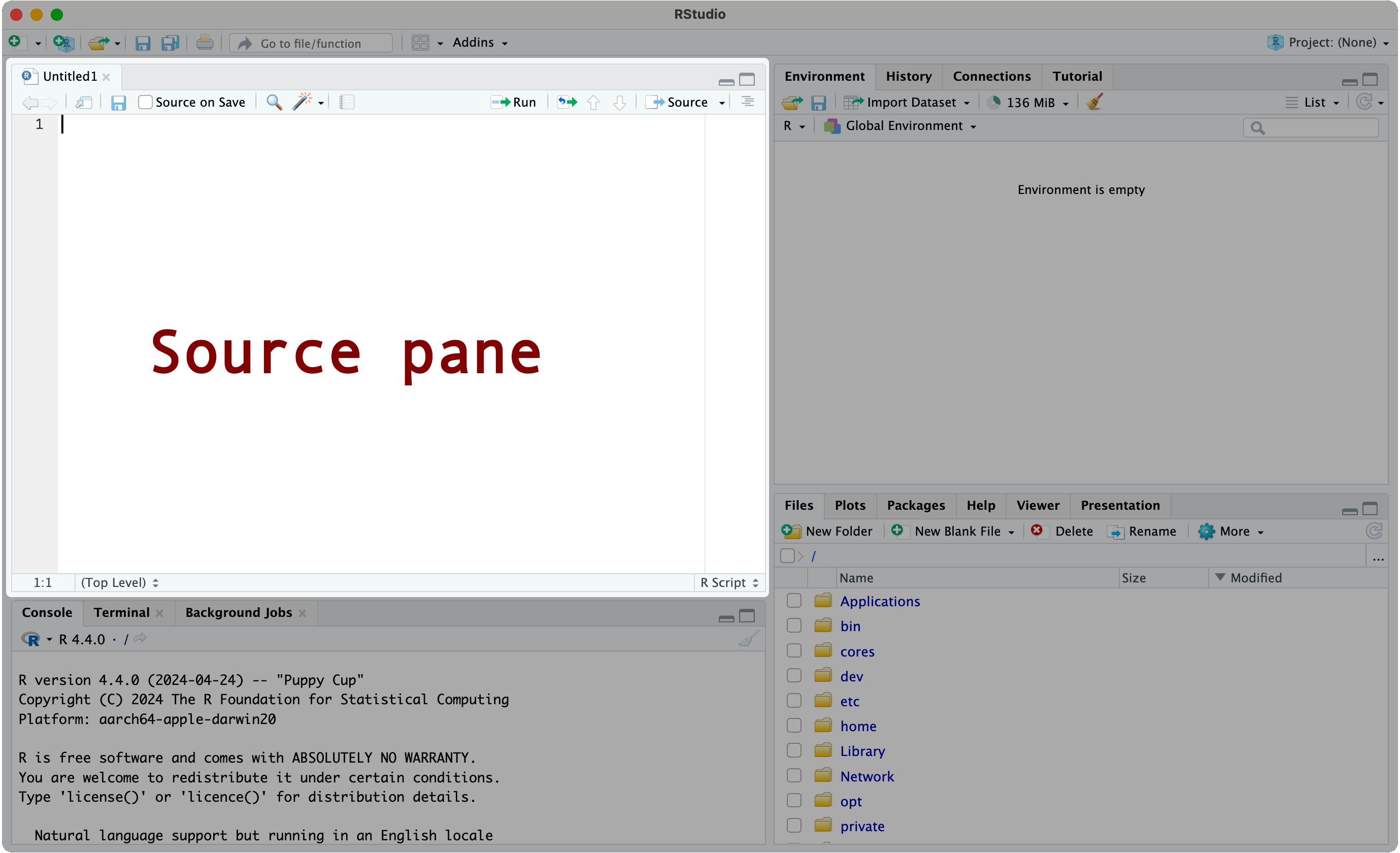

4. Now, if you press Ctrl+Shift+N or Cmd+Shift+N, depending on whether you are using a mac or not, a new ‘pane’ should appear: the ‘source’ pane.

Access to this material

• The best way to get the material for these sessions is to run the following command in the ‘Console’.

usethis::create_from_github(
  "https://github.com/nzilbb/ws-getting-started"
)

• If it doesn’t work, follow instructions at https://tinyurl.com/nzilbb-induction
• You should now have an RStudio window open in a new project with the slides and example R scripts.

Now we know about the console pane, I encourage you to run the following command, which will give you access to the material for this workshop in a particularly good way.

This should work, provided you have followed the set up instructions on the front page of the NZILBB Statistics Workshops website.

If the command works, you should be in a new RStudio window, open in an R project, with access to all the code we will see here and to these slides.

Avoiding bad habits

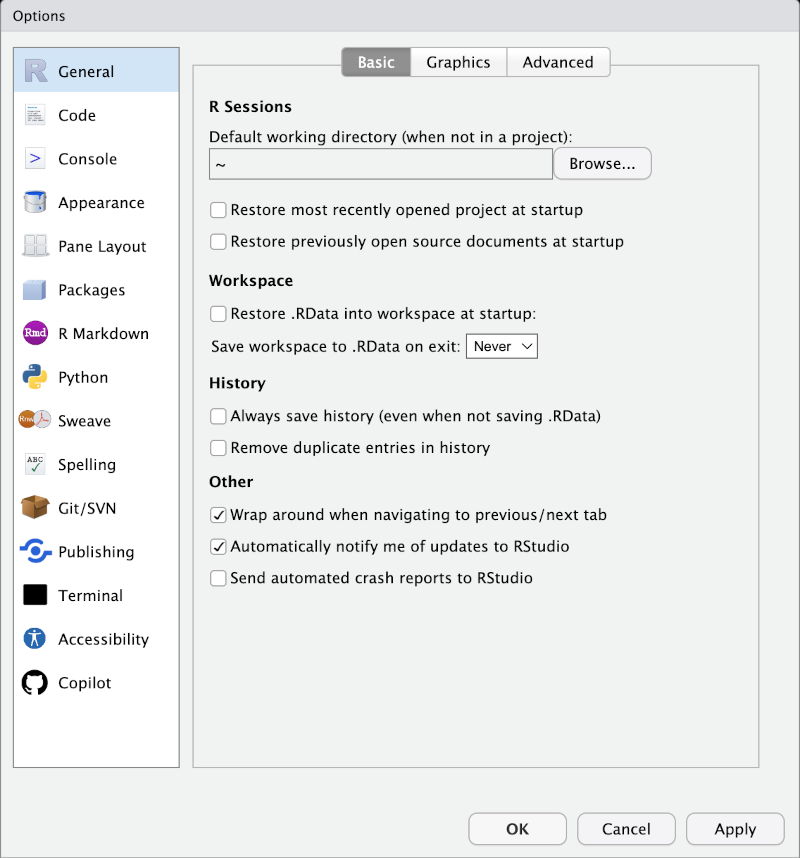

• Change default settings (Tools > Global Options).
• Don’t save results of computations in .RData.
• Set line endings to avoid git issues with collaborators.

We’ve got a few small bits of housekeeping before we continue one.

You should change your RStudio settings to encourage good habits and avoid bad ones.

One of the biggest bad habits is keeping a single R session going for a long time, constantly rerunning code, and keeping models and data in ‘short term’ memory. Instead, you need to rely on your code and scripts to produce everything you need. A huge number of problems can be avoided by turning off R’s capacity to keep a ‘session’ alive by saving ‘.RData’ between sessions.

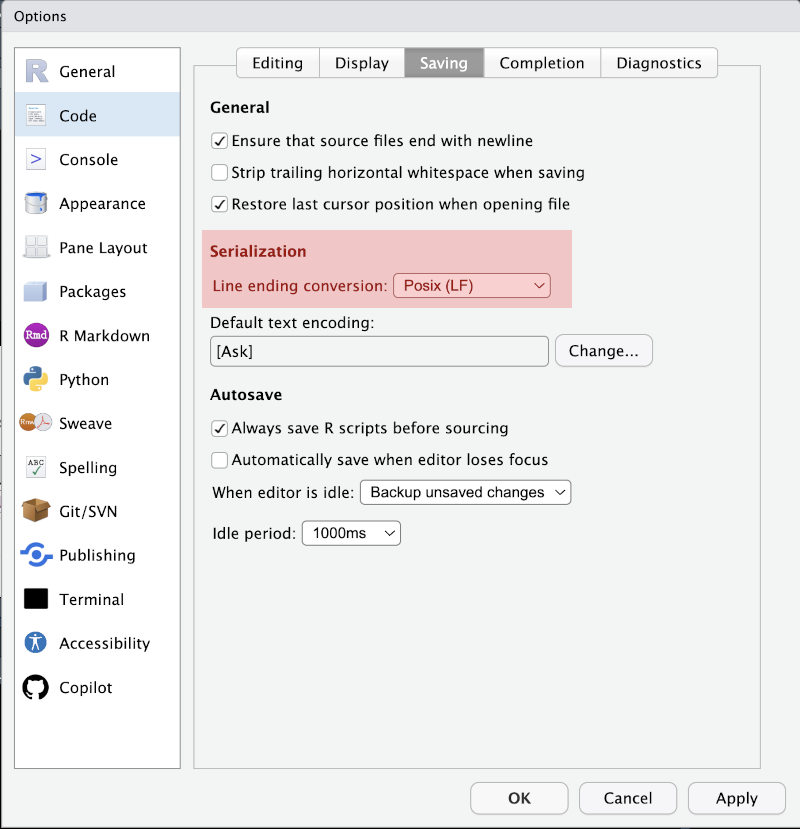

I also encourage you to insist on Posix (LF) line endings. This will help you to collaborite with others using git. I won’t explain what this is here, but if you are interested, there is a great talk on YouTube called “There’s no such thing as plain text” by Dylan Beattie, which I encourage you to watch!

RStudio projects

• A RStudio project is a directory (folder) which contains everything you need for a data analysis project, including:
  • the data,
  • R scripts,
  • plots,
  • models,
  • write-ups, etc
• Use projects all the time!

I mentioned R Studio projects before. These are a particularly good way to combine together everything you need for a data analysis project. Ideally, when the time comes, you can share the entire project with collaborators and then, ultimately, the world.

The project can include, for instance, [list]

You should always use projects. If you want to be convinced of this rather than taking it on my word, you could start by following the link in the footer here.

Core Concepts

First steps in R

• Go to the console pane.
• You can enter code after the >
• Let’s start simple: type ‘2 + 2’ and press enter.

🥳🥳🥳🥳🥳

OK, let’s actually write some code. We’re going to start in the console pane and enter some simple commands, using R as though it’s a calculator.

Let’s find out what 2+2 equals. Enter 2 + 2 in the console pane and press ‘return’/‘enter’

Woohoo, you’re a computer programmer now.

R scripts

• The console can be very useful for small tasks.
• An R script allows us to keep a step-by-step record.
• Open a new R script (Ctrl + Shift + N, or File > New File > R Script)
• Save it inside a directory called ‘scripts’ with a name such as getting-started.R.

The console is fine here and there. I often enter something like 2+2 just to check if my computer is responding. Sometimes it’s also good for double checking values or exploring errors. However, if we want to share an analysis or save any of our work, we really need a ‘script’. This is a text file which contains a step-by-step list of R commands.

To start a new script, enter Ctrl/Cmd + Shift + N again, or use the File menu.

I’d save it straight away, inside a ‘scripts’ folder in our project, with a name like ‘getting-started.R’

More maths

1 * 2
2 ^ 3
2 / 4
"kea" + "tūī"

• Enter the above lines one-by-one and run them by pressing ‘Ctrl/Cmd + Enter/Return’.
• Output will appear in the console pane.
• The final statement produces an error
  • Why?

Let’s do some more simple maths.

To multiply we use the asterisk * etc etc.

This final line will give your first error. Interpreting error messages will become an important skill and is not always easy. In this case, focus on the words ‘non-numeric’. In R, the addition function (+) only works for numbers. Here, we are trying to apply it to words.

Help! I just see a ‘+’!

• If you enter an incomplete statement, R will wait for you to complete it in the console pane.

5 *

• Two options:
  1. Complete the statement in the console.
  2. Enter “Ctrl + C” to escape.

Here’s a common problem which might trip you up.

If you enter…

Let’s do that now: we’re multiplying 5 by… something. You’ll see a blinking cursor in the console pane. It is asking you to complete the statement. Here you have two options…

Comments

• Anything after a # will be ignored by R.

# Add 4 to 3
3 + 4

• Use this to add ‘comments’ for human readers.

Functions

toupper("this is an example sentence")
paste("tūī", "kea", sep = "-")
rnorm(n = 100, mean = 0, sd = 1)
rbinom(1, 1, 0.5)
?toupper

• Functions take input(s) and produce an output.
• The function’s name is followed by the input(s) inside brakets.
• The inputs are called arguments
• ? before function name produces help (in output pane)

The real value of something like R comes when we can use ‘functions’, ideally written by someone else, to perform complex data analysis tasks. In almost all cases, functions take some input and produce an output (why am I hedging? sometimes functions have side effects and don’t technically produce an output, and sometimes they don’t need any an input). The technical name for an input to a function is an ‘argument’.

Whatever the case, the usual pattern with a function is to write its name and then the inputs inside brackets. Let’s try it with these functions.

Ask what toupper() is going to do.

We have a function with ‘pastes’ strings togetther (paste()), we also have some functions for producing random data from a distribution. Very important for statistics. Here there’s two examples, rnorm() produces data from a normal distribution and rbinom() from a binomial distribution. With these arguments, we now have a way to flip a fair coin in R.

Functions typically come with documentation, we can can get at using a question mark before the function name. These can be hard to read for beginners, but are an important source for telling you how to use the function.

Logic

"tūī" == "kea"
1 == 2
1 == "kea"
"tūī" != "kea"
"tūī" != "kea" & 1 != 2 # "And"
"tūī" == "kea" | 1 != 2 # "Or"
1 >= 4

• Logical statements can be TRUE or FALSE
• These are very useful for filtering data
• Combine multiple logical statements with ‘and’ (‘&’) or ‘or’ (|)

Logical statements are a very important group of R statements, consisting of those statements which produce either TRUE or FALSE. They are particularly valuable for filtering data.

We can combine logical statements with & (and) or | (or).

Vectors

• Data isn’t just one or two numbers!
• Vectors allow us to combine many observations.

c("I", "went", "to", "the", "shop")
c(1, 2, 3, 4, 5)
c(TRUE, TRUE, FALSE, FALSE, TRUE)
mean(c(1, 2, 3, 4, 5))
paste0(c(1, 2, 3), ". ", c("I", "went", "to"))

• The c stands for “combine”.
• All the entries in a vector must be of the same type.
• A vector counts as a single argument to a function.

We want to use these tools to deal with data. But real data isn’t just one or two numbers.

We need large collections of objections. To combine data points together, we use ‘vectors’. Here are some examples.

The c stands for …

All the entries… What does this mean? They need to be all numbers, or all strings, or all logical objects (i.e. TRUE or FALSE).

We can use vectors as arguments to functions, as in the example of mean() and paste0()

Variables

• We want to reuse the same data multiple times
• Variables are the solution.
• Variables associate a name with an object using ‘<-’

age <- c(2, 4, 2, 3)

• Look in the environment pane.
• Your variable is there now.

age + 1 # What does this do?

We’re currently entering data manually into vectors every time we need them. This is no good! We need to give names to the data we are working with in order to reuse it.

This is done by variables.

Variables associate…

Run age <- ... and look in your environment pane.

Now, have a look at what age + 1 does.

This is a fairly common pattern in R, we get ‘element-wise’ arithmetic, where each element has the same function applied to it individually.

Data frames

• How do we associate multiple data points from the same individual?
• Data frames
  • Rows are ‘observations’
  • Columns are ‘variables’ 🫤🫤🫤🫤🫤

toddlers <- data.frame(
  age = c(2, 4, 2, 3),
  happiness = c(5, 4, 5, 1),
  name = c("Basil", "Glenys", "Offa", "Gronk")
)

• NB: Statements can go across multiple lines.

We continue to build up to something actually useful. We need to associate multiple values with the same individual or observation or whatever it is we are working with. This is done using dataframes, a core feature or R. In a data frame, each row is …

Note that there is an ambiguity between a ‘variable’ in the sense of a column of a data frame and a variable in the sense of anything we have given a name while using R. In practice this isn’t usually an issue.

Let’s create a tiny data frame with information about a handful of toddlers.

This is the first time where I’ve asked you to write a statement across multiple lines in a script. A statement does not need to be confined to one line. Often we add new lines after an open bracket, giving a new line to each argument. Many people find this easier to read and I encourage you to do it for all but the simplest statements.

Accessing data

• View(toddlers): a spreadsheet-style view of data.
• Square brackets give access to portions of the data (whether a vector or a data frame).

age[2]
age[3:4]
toddlers[1,3]
toddlers[2,]
toddlers[,3]

We often need to access specific values inside a vector or dataframe.

For data frames, a nice way to see our data (not to modify it), is to use the View() function.

For both vectors and data frames we can use square brakets to get at specific values. The first line here uses a single number to get at the second value in the vector. We can also get a range of values by using a colon with two numbers either side.

For a data frame we can use two numbers, separated by a comma. The first identifies the relevant rows the second identifies the relevant columns. If we want all rows, or all columns, we can just not enter a number before (or after) the colon.

Accessing data with names

• Use ‘$’ to access columns in a data frame.

toddlers$name
toddlers$happiness

Data frame columns have names, which we can use to access data. We put the name of the column after the name of the data frame, separating the two with a dollar sign.

Accessing data with vectors

age[c(2, 4)] # the second and fourth entry in age.
age[age > 2] # filter using a logical statement
toddlers[, c(2, 3)]
toddlers[c(1, 2), ]
toddlers[toddlers$happiness < 2, ]

• Use of logical statements lets us filter data.
• Logical statements produce ‘logical vectors’.

toddlers$happiness < 2

[1] FALSE FALSE FALSE  TRUE

Finally, we can get at data from data frames using vectors.

The first line here gives us the second and fourth entry in the age vector.

This is also where we see the use of logical statements to filter data. The second line gives us every age higher than 2.

The same strategies (vectors of number or logical values) can be used for data frames as well, as in the third, fourth, and fifth statements above.

Packages

• Packages contain R code and data for solving specific problems.

install.packages('cowsay')
library(cowsay)

• We install packages with install.packages().
  • You shouldn’t put install.packages() directly in a script.
• Packages are loaded with library(), or individual functions can be accessed using ::

cowsay::say(what = "Ko te Kāhui Roro Reo te rōpū pai rawe", by = "cat")

Many problems can be solved with packages. Packages allow you to borrow code and sometimes data from others. These notably include packages for fitting certain kinds of statistical model or producing certains kinds of plot.

Here’s an example using a very silly package called cowsay. We can install this package using the install.packages() fuction. This function is best used once (rather than rerunning it each time you run a script).

Functions from cowsay can be accessed either by loading the package, using the library() function. Or we can use two colons to access a specific function from the package.

In this case, we load the say() function from the cowsay package using the two colon approach. And this is the very useful output…

Packages

 _______________________________________
<Ko te Kāhui Roro Reo te rōpū pai rawe>
 ---------------------------------------
         \
          \

            |\___/|
          ==) ^Y^ (==
            \  ^  /
             )=*=(
            /     \
            |     |
           /| | | |\
           \| | |_|/\
      jgs  //_// ___/
               \_)

The tidyverse

• The tidyverse is a popular collection of packages.
• It includes, e.g.:
  • dplyr: functions for data filtering and transformation.
  • ggplot2: a popular package for data visualisation.
  • readr: functions for reading and writing data.
  • stringr: functions for manipulating strings.
• Code written with tidyverse packages has a different style. (…better)

install.packages("tidyverse")

A realistic(ish) example

Get some data

• We’ve borrowing data from (Mattingley et al. 2024).
• The data lives inside a folder called data in our project.
• It was downloaded from OSF, here: https://osf.io/ucx8n

Data inspection (text)

library(tidyverse)
library(here)

# read in data
wellform <- read_tsv(here('data', 'wellFormTask2021.tsv'))

# examine data
View(wellform)
summary(wellform)

• read_tsv() loads ‘tab separated values’ (simlar to a .csv file)
• summary() tells us about some of the variables.
• The data comes from an experiment exploring judgements of well-formedness of Māori words among non-Māori speakers.

Data inspection (visualise)

• hist() is a built-in function for making histograms.

# Look at distribution of reaction times
hist(wellform$reactionTime)

Data inspection (visualise)

# Look at shorter reaction times
hist(wellform$reactionTime[wellform$reactionTime < 20])

Filter

# Filter out long reaction times.
# base R style
wellform_filtered <- wellform[wellform$reactionTime < 5, ]

# tidyverse style
wellform_filtered <- wellform |>
  filter(reactionTime < 5)

Chaining functions

# Chaining functions together with pipes.
wellform_filtered <- wellform |>
  filter(reactionTime < 5) |>
  select(
    workerId, stimulus, word,
    enteredResponse, reactionTime, score.shortv
  ) |>
  rename(
    participant = workerId,
    response = enteredResponse,
    reaction_time = reactionTime,
    phonotactic_score = score.shortv
  )

• Pipes send output of a function to the next function.
• Commonly used in tidyverse style.

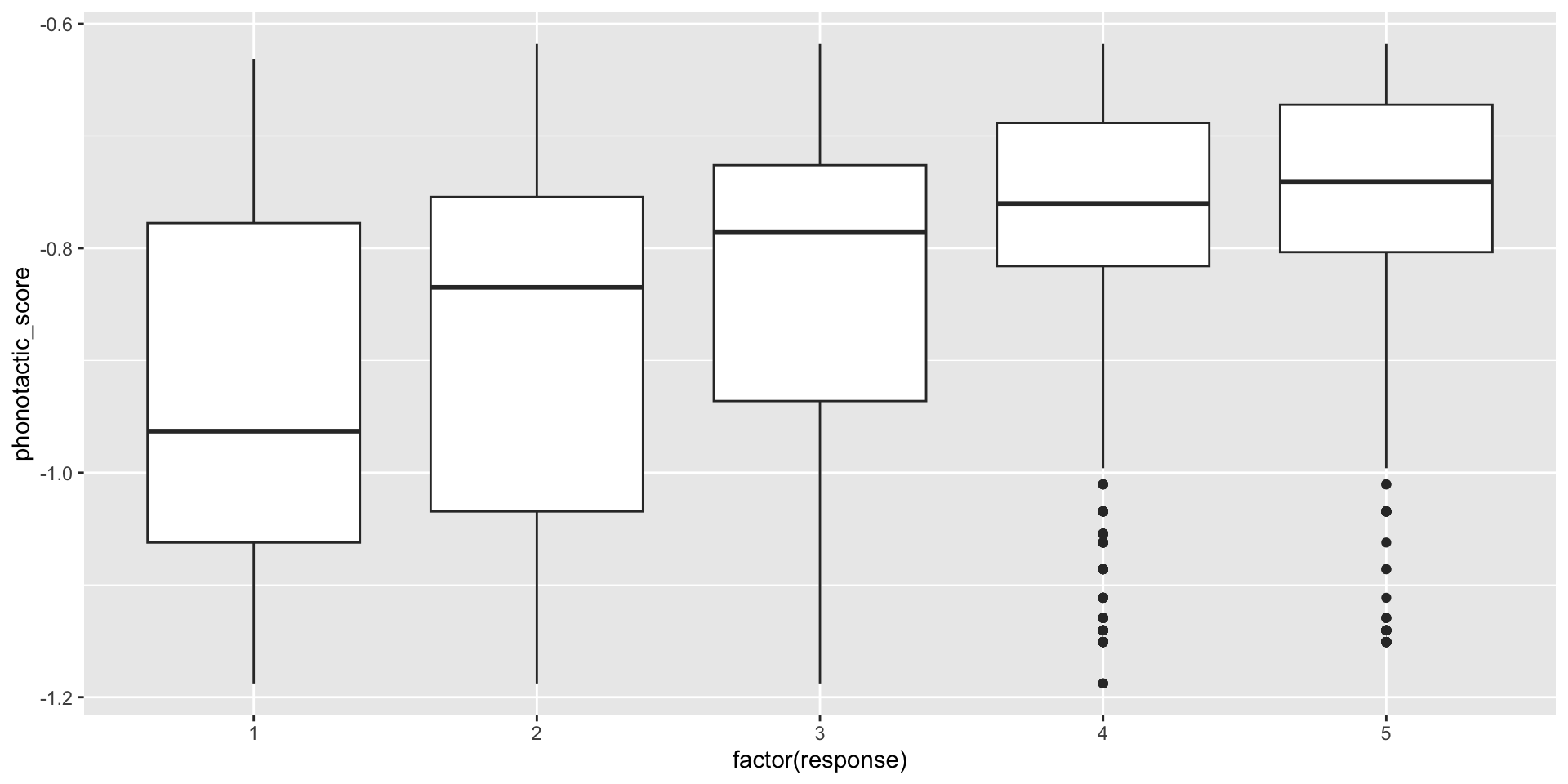

Visualise again

# visualise again using ggplot
wellform_filtered |>
  ggplot(
    aes(
      x = factor(response),
      y = phonotactic_score
    )
  ) +
  geom_boxplot()

• More on visualisation later in the day.

Visualise again

Model

• Let’s fit a model using the built-in lm() function.

# model
wellform_fit <- lm(
  response ~ phonotactic_score + reaction_time,
  data = wellform_filtered
)

summary(wellform_fit)

Model

Call:
lm(formula = response ~ phonotactic_score + reaction_time, data = wellform_filtered)

Residuals:
    Min      1Q  Median      3Q     Max
-3.0752 -0.8669  0.1387  1.0105  2.8295

Coefficients:
                  Estimate Std. Error t value Pr(>|t|)
(Intercept)        6.16334    0.11274   54.67   <2e-16 ***
phonotactic_score  3.53412    0.12287   28.76   <2e-16 ***
reaction_time      0.04016    0.02039    1.97   0.0489 *
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 1.217 on 4327 degrees of freedom
Multiple R-squared:  0.1605,    Adjusted R-squared:  0.1602
F-statistic: 413.8 on 2 and 4327 DF,  p-value: < 2.2e-16

Plot predictions

# Get predictions from model.

# Step 1. Decide what we want predictions for. In this case,
# the full range of phonotactic scores at the mean value for
# reaction time.
to_predict <- data.frame(
  phonotactic_score = seq(-1.2, -0.6, by = 0.01),
  reaction_time = mean(wellform_filtered$reaction_time)
)

# Step 2: Get predictions using the `predict()` function.
model_predictions <- predict(
  wellform_fit,
  newdata = to_predict,
  se.fit = TRUE
)

# Step 3: add predictions and 95% confidence intervals to the `to_predict` data
# frame.
to_predict$prediction <- model_predictions$fit
to_predict$upper <- model_predictions$fit + 1.96 * model_predictions$se
to_predict$lower <- model_predictions$fit - 1.96 * model_predictions$se

# Step 4: visualise again
to_predict |>
  ggplot(
    aes(
      x = phonotactic_score,
      y = prediction,
      ymin = lower,
      ymax = upper
    )
  ) +
  geom_ribbon(alpha = 0.4) +
  geom_line()

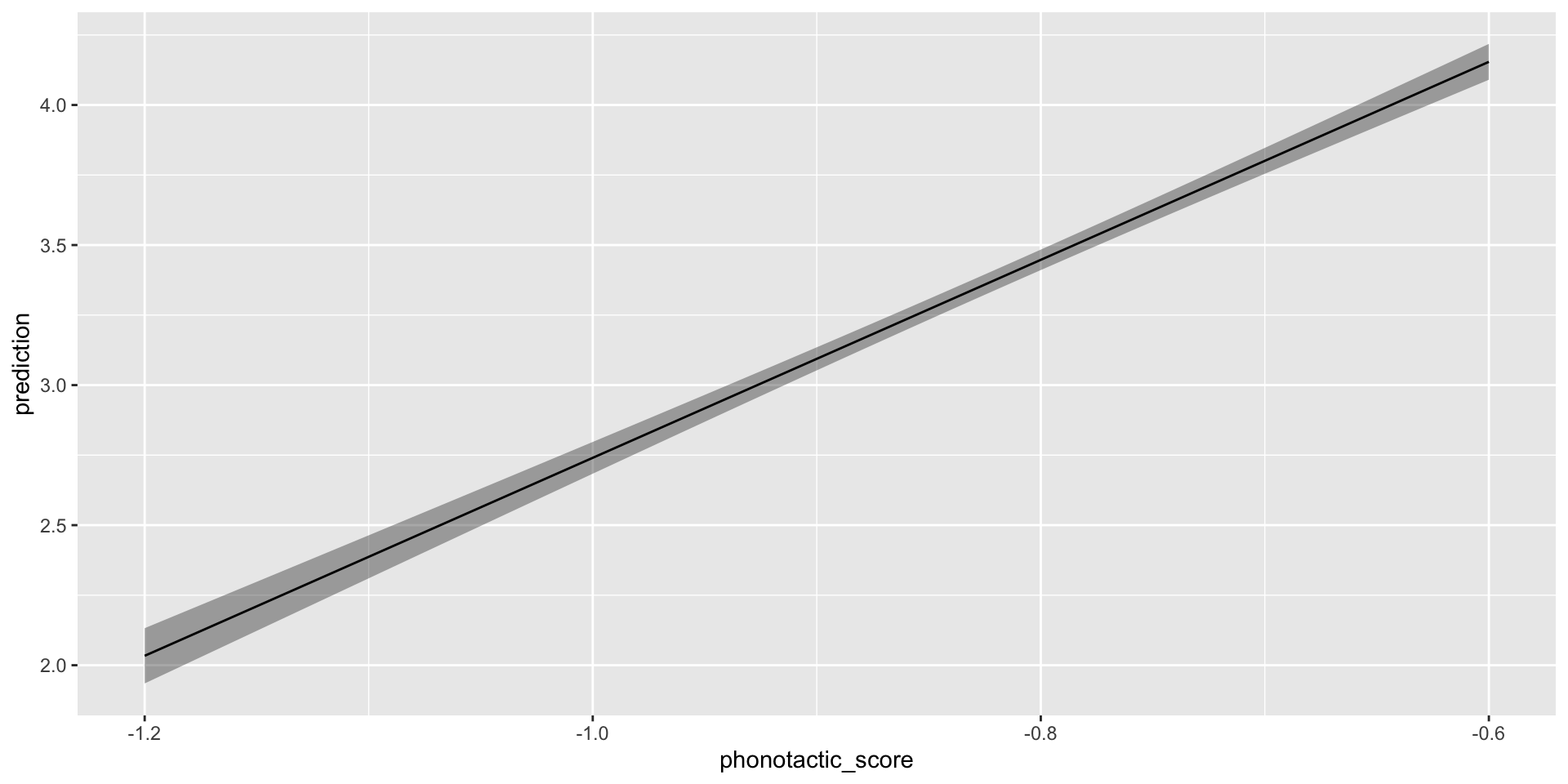

Plot predictions

Summary

Summary

We’ve covered a lot!

1. An example of a full analysis in a single script.
2. Core R concepts.
3. Orientation to R and RStudio.

Next time: More on data processing.

References

Allaire, JJ, Yihui Xie, Christophe Dervieux, Jonathan McPherson, Javier Luraschi, Kevin Ushey, Aron Atkins, et al. 2024. rmarkdown: Dynamic Documents for r. https://github.com/rstudio/rmarkdown.

Chamberlain, Scott, and Amanda Dobbyn. 2025. cowsay: Messages, Warnings, Strings with Ascii Animals. https://doi.org/10.32614/CRAN.package.cowsay.

Mattingley, Wakayo, Forrest Panther, Simon Todd, Jeanette King, Jennifer Hay, and Peter J. Keegan. 2024. “Awakening the Proto-Lexicon: A Proto-Lexicon Gives Learning Advantages for Intentionally Learning a Language.” Language Learning 74 (3): 744–76. https://doi.org/10.1111/lang.12635.

Müller, Kirill. 2020. here: A Simpler Way to Find Your Files. https://doi.org/10.32614/CRAN.package.here.

R Core Team. 2025. R: A Language and Environment for Statistical Computing. Vienna, Austria: R Foundation for Statistical Computing. https://www.R-project.org/.

Wickham, Hadley, Mara Averick, Jennifer Bryan, Winston Chang, Lucy D’Agostino McGowan, Romain François, Garrett Grolemund, et al. 2019. “Welcome to the tidyverse.” Journal of Open Source Software 4 (43): 1686. https://doi.org/10.21105/joss.01686.

Xie, Yihui, J. J. Allaire, and Garrett Grolemund. 2018. R Markdown: The Definitive Guide. Boca Raton, Florida: Chapman; Hall/CRC. https://bookdown.org/yihui/rmarkdown.

Xie, Yihui, Christophe Dervieux, and Emily Riederer. 2020. R Markdown Cookbook. Boca Raton, Florida: Chapman; Hall/CRC. https://bookdown.org/yihui/rmarkdown-cookbook.
