Foundations

Session 2: Data processing

Joshua Wilson Black
joshua.black@canterbury.ac.nz

Te Kāhui Roro Reo | New Zealand Institute of Language, Brain and Behaviour

Te Whare Wānanga o Waitaha | University of Canterbury

Overview

Overview

  • tidyverse and base R.
  • Functions from two tidyverse packages:
    1. dplyr: “a grammar of data manipulation”
    • The ‘verbs’
    1. tidyr: a tool to “help you create tidy data”

Code and slides

usethis::create_from_github(
  "https://github.com/nzilbb/ws-data-processing"
)

tidyverse

What is the tidyverse?

  • A set of packages for R which follow a similar philosophy.
    • they are ‘opinionated’ tools.
  • These include:
    • dplyr - for data manipulation
    • tidyr - for creating ‘tidy’ data
    • ggplot2 - for plotting (see next week)

What is base R?

  • …anything other than the tidyverse
  • R has techniques for data processing built in.
    • e.g., from last week, filtering with a Boolean vector.
# Filtering
toddlers[toddlers$name == "Deano", ]
toddlers[toddlers$happiness_score < 2, ]
    • …or creating new columns.
# Create new column.
toddlers$pick_up_time <- c("12:45", "1:00", "2:45")

Interaction between base R and the tidyverse

  • A salient feature of tidyverse code: %>%
    • the ‘pipe’ sends the output of one function as an input to another function.
    • Comes with the tidyverse package magrittr.
  • This was so popular, there is now a base R version: |>
    • Introduced in R 4.1.0.

dplyr

dplyr

  • A ‘grammar’ for data manipulation.
    • An abstract, universal, way of thinking about data problems and solutions.
  • The core: a set of ‘verbs’ — things you can do to data.
  • The ideal of dplyr:
    • Reading: mostly human readable
    • Writing: encourages us to break problems into a series of simple steps

Some verbs

  • Here’s some dplyr verbs:
    • select(): select one or more columns
    • filter(): filter data
    • mutate(): create new columns
  • We’ll learn how these work in context.

Pipes

  • We string together verbs using pipes.
    • |> or %>%
  • e.g.:
sad_toddlers <- toddlers |>
  filter(
    happiness < 2
  ) |>
  mutate(
    hungry = (current_time - last_meal_time) > 2
  )
  • NB: you can use variable names inside these functions (the dplyr ‘verbs’).
  • You don’t constantly have to type, e.g., toddlers$happiness.

Grouped data

  • We can apply the same steps to groups in the data independently.
    • e.g., apply a series of opperations separately to male and female experimental participants.
    • group_by(): Creates groups
  • Some functions implicitly group…
    • count(age_in_months): if you had a column called ‘age_in_months’, this would group the data by the values in age_in_months and count how many rows there are in each group.

  • Two kinds of pipe problem:
    1. Nothings coming through (i.e., you get an error message).
    2. Mysterious liquids (i.e., not what you expected and/or warning messages).
  • Find an ‘inspection opening’
    • Check output is correct at each step.
    • Highlight parts of the pipe and press ‘Run’
penguins <- penguins |>
  filter(
    Island == "Torgersen"
  ) |>
  mutate(
    mean_bill = mean(bill_len)
  )
Error in `filter()`:
ℹ In argument: `Island == "Torgersen"`.
Caused by error:
! object 'Island' not found
  • Error in filter()?
  • In this case: misspelled column.
penguins <- penguins |>
  filter(
    island == "Torgersen"
  ) |>
  mutate(
    mean_bill = mean(bill_len)
  )

penguins$mean_bill
 [1] NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA
[26] NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA
[51] NA NA
  • Where’s my mean bill length!?

tidyr

‘tidy’ data

Tidy data is data where:

  1. Each variable is a column; each column is a variable.
  2. Each observation is a row; each row is an observation.
  3. Each value is a cell; each cell is a single value.

(https://tidyr.tidyverse.org/)

By contrast:

  • Storing data in column names
  • More than one variable stored in a column.
  • Different ‘observational types’ in one dataframe.
    • e.g. Participant info + tokens
  • For more, see: https://tidyr.tidyverse.org/articles/tidy-data.html
  • It’s possible to worry too much about this…

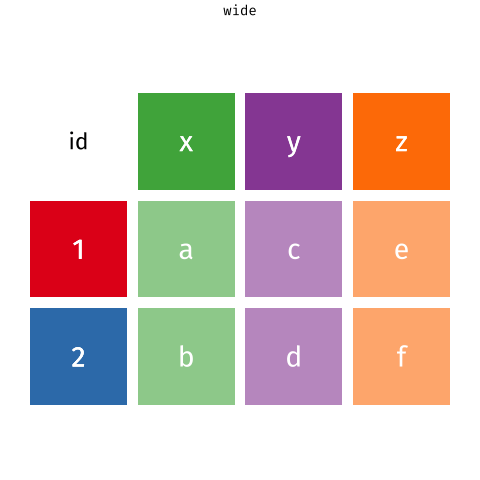

Pivoting

  • Are our ‘observations’ participants, vowel tokens, or individual formant readings.
  • Varies with context and sometimes we need to switch between contexts.
  • Wider data has more columns and (usually) fewer rows.
  • Longer data has fewer columns and (usually) more rows.
  • tidyr provides the functions pivot_wider() and pivot_longer().

Image source: Gavin Simpson via Garrick Aden-Buie’s (@grrrck) Tidy Animated Verbs modified by Mara Averick (@dataandme)

What now?

What now?

usethis::create_from_github(
  "https://github.com/nzilbb/ws-data-processing"
)

References

Allaire, JJ, Yihui Xie, Christophe Dervieux, Jonathan McPherson, Javier Luraschi, Kevin Ushey, Aron Atkins, et al. 2024. rmarkdown: Dynamic Documents for r. https://github.com/rstudio/rmarkdown.
Müller, Kirill. 2020. here: A Simpler Way to Find Your Files. https://doi.org/10.32614/CRAN.package.here.
R Core Team. 2025. R: A Language and Environment for Statistical Computing. Vienna, Austria: R Foundation for Statistical Computing. https://www.R-project.org/.
Wickham, Hadley, Mara Averick, Jennifer Bryan, Winston Chang, Lucy D’Agostino McGowan, Romain François, Garrett Grolemund, et al. 2019. “Welcome to the tidyverse.” Journal of Open Source Software 4 (43): 1686. https://doi.org/10.21105/joss.01686.
Xie, Yihui, J. J. Allaire, and Garrett Grolemund. 2018. R Markdown: The Definitive Guide. Boca Raton, Florida: Chapman; Hall/CRC. https://bookdown.org/yihui/rmarkdown.
Xie, Yihui, Christophe Dervieux, and Emily Riederer. 2020. R Markdown Cookbook. Boca Raton, Florida: Chapman; Hall/CRC. https://bookdown.org/yihui/rmarkdown-cookbook.
Zhu, Hao. 2024. kableExtra: Construct Complex Table with “kable” and Pipe Syntax. https://doi.org/10.32614/CRAN.package.kableExtra.
